Welcome to Rocket Engineering
Building a three-stage rocket is one of the most exciting milestones in any space flight simulator. This tutorial will guide you through the entire process, from understanding the physics to launching your creation into orbit.
What You'll Learn
- ✓ Multi-stage rocket physics and principles
- ✓ Component selection and optimization
- ✓ Staging sequence and separation mechanics
- ✓ Launch procedures and orbital insertion
- ✓ Troubleshooting common issues

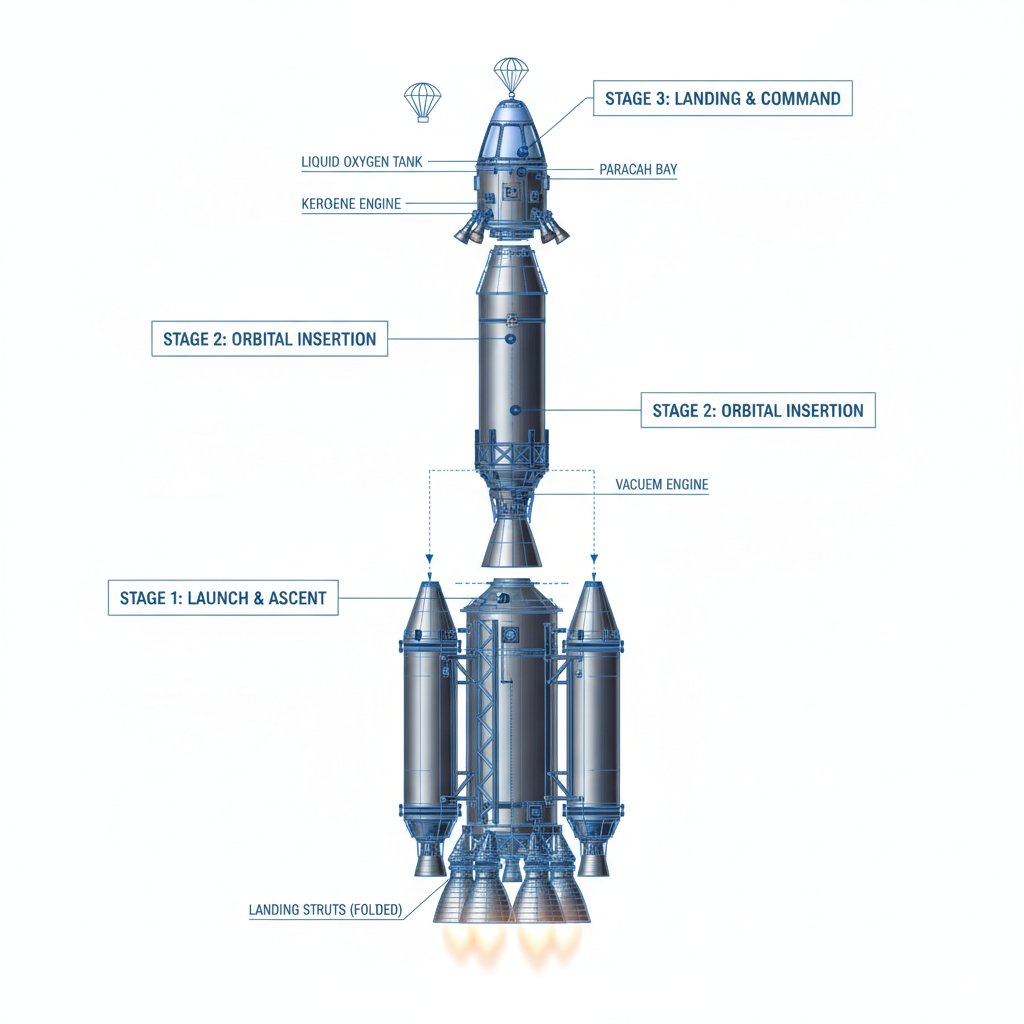

Complete three-stage rocket configuration
Understanding Multi-Stage Rockets
🔥 Stage 1: Booster
The first stage provides the initial thrust to overcome Earth's gravity and atmospheric drag. It contains the most fuel and the most powerful engines.
🌌 Stage 2: Upper Stage
The second stage operates in the vacuum of space, providing efficient propulsion for orbital insertion and trajectory changes.
🛰️ Stage 3: Payload
The final stage carries the payload and provides fine maneuvering capabilities for precise orbital operations and landing.
Physics Principle
Step-by-Step Construction Guide
Building the First Stage
Components Needed:
- Large fuel tanks (6+ wide recommended)
- High-thrust engines (Hawk, Titan, or Frontier)
- Side boosters with separators
- Structural components for stability

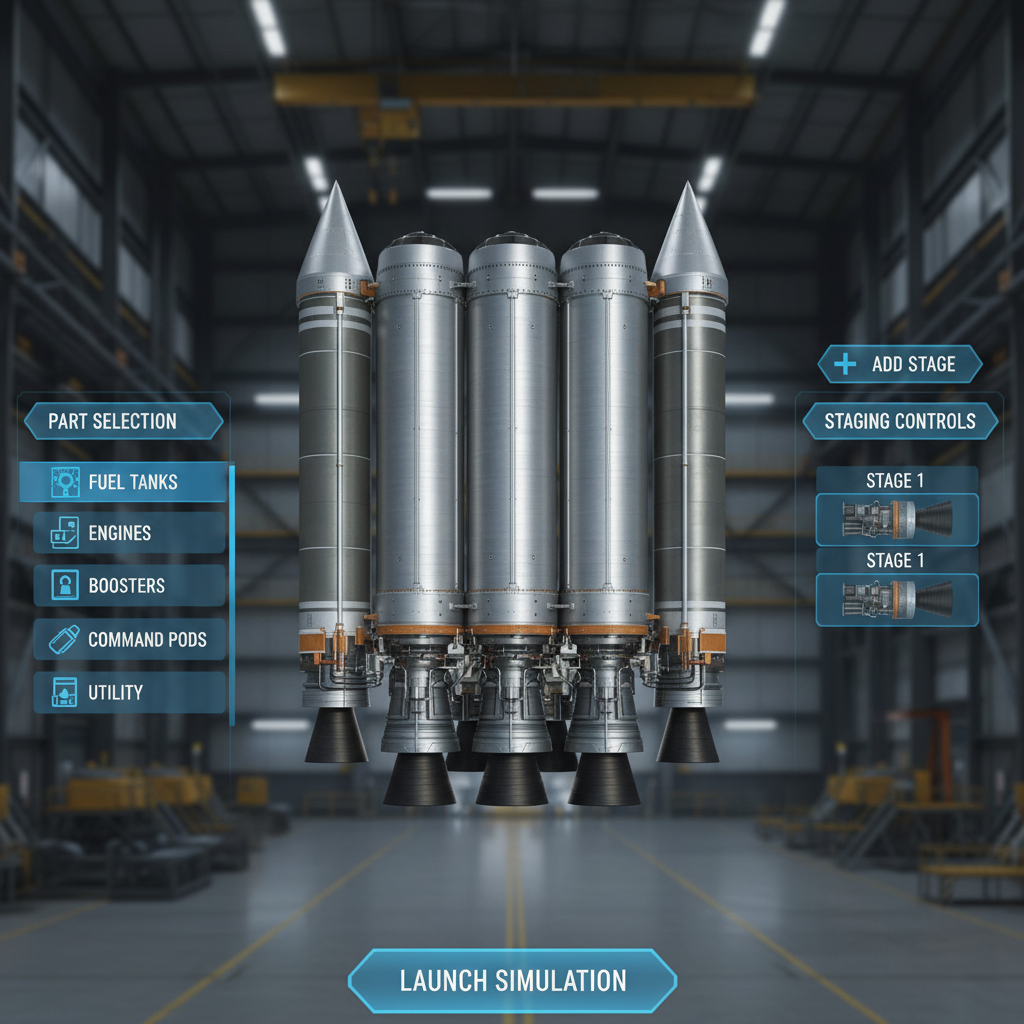

First stage with boosters attached
Constructing the Second Stage
Key Features:
- Vacuum-optimized engines (Valiant or Frontier)
- Medium-sized fuel tanks
- Interstage separators
- Reduced mass for efficiency
Functions:
Adding the Third Stage & Payload
Essential Components:
- Small, efficient engines (Kolibri recommended)
- Command module or probe core
- Landing legs for surface missions
- Parachutes for atmospheric reentry
- Heat shields for protection

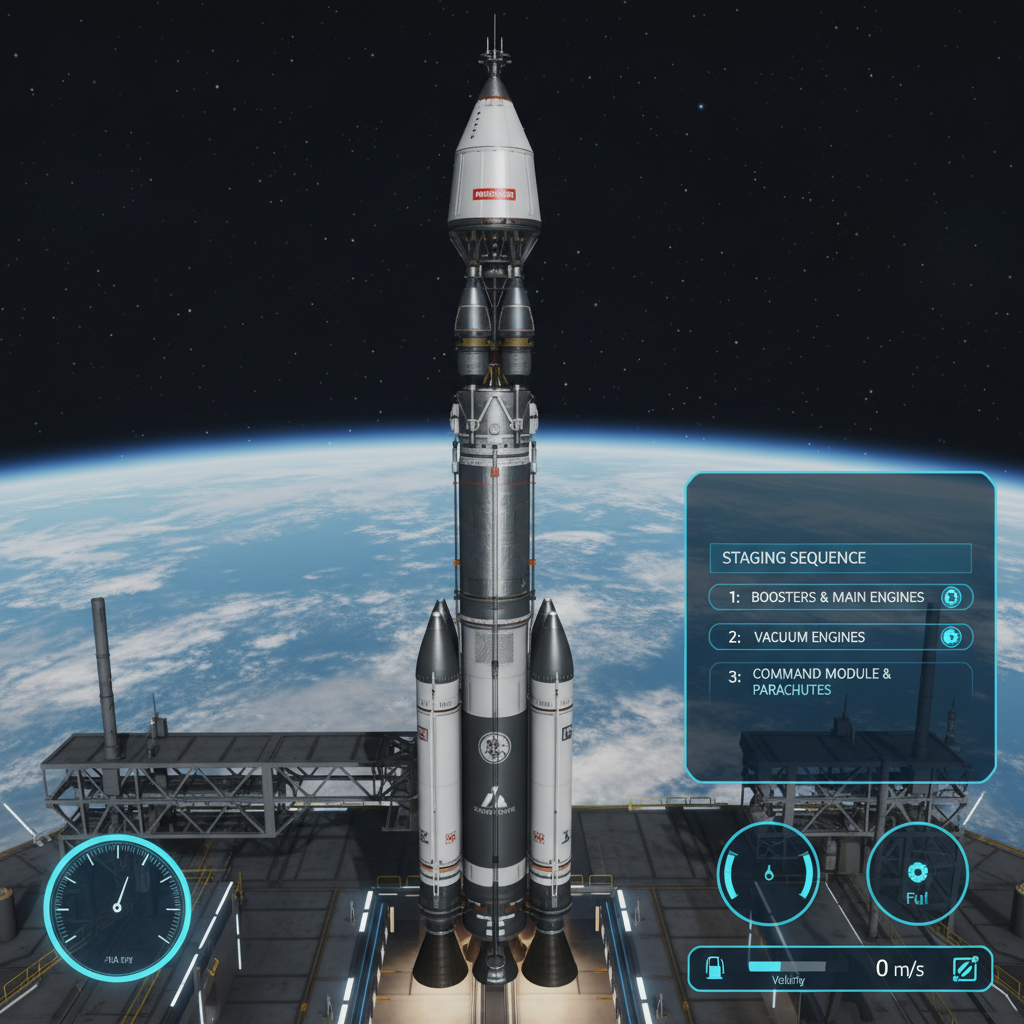

Complete three-stage rocket ready for launch
Staging Configuration & Testing
Staging Setup:
Pre-Launch Checklist:
Launch Sequence & Stage Separation
Three-stage rocket launch and separation sequence
Pro Tips & Troubleshooting
🎯 Optimization Tips
- • Use asparagus staging for maximum efficiency
- • Keep center of mass below center of thrust
- • Add reaction wheels for better control
- • Use fairings to reduce atmospheric drag
- • Test TWR at different fuel levels
⚠️ Common Mistakes
- • Insufficient TWR for first stage
- • Poor aerodynamic design
- • Incorrect staging sequence
- • Overengineering for simple missions
- • Forgetting heat shields for reentry
If your rocket isn't lifting off, check these common issues:
- TWR is below 1.0 - add more engines or reduce mass
- Engines not properly staged - verify staging configuration
- Insufficient fuel - check fuel lines and tank capacity
- Control issues - ensure you have a command module
Aerodynamic instability can cause your rocket to flip. Solutions:
- Add fins at the bottom of the first stage
- Ensure center of mass is below center of pressure
- Reduce throttle during atmospheric flight
- Use a more gradual gravity turn
Problems with stage separation can ruin your mission:
- Use decouplers with sufficient separation force
- Ensure clean separation - no overlapping parts
- Add small separation motors if needed
- Test staging sequence before launch
Mission Profiles
🌍 Low Earth Orbit
Delta-V Required: ~9,400 m/s
Stage 1: 6,000 m/s atmospheric ascent
Stage 2: 2,400 m/s orbital insertion
Stage 3: 1,000 m/s maneuvering
🌙 Lunar Mission
Delta-V Required: ~15,000 m/s
Stage 1: Earth escape velocity
Stage 2: Trans-lunar injection
Stage 3: Lunar landing & return
🔴 Mars Mission
Delta-V Required: ~20,000+ m/s
Stage 1: Earth departure
Stage 2: Interplanetary transfer
Stage 3: Mars capture & landing
Ready for Launch! 🚀
You now have all the knowledge needed to build and launch your first three-stage rocket. Remember, rocket engineering is iterative - don't be afraid to experiment and learn from failures!
